Description

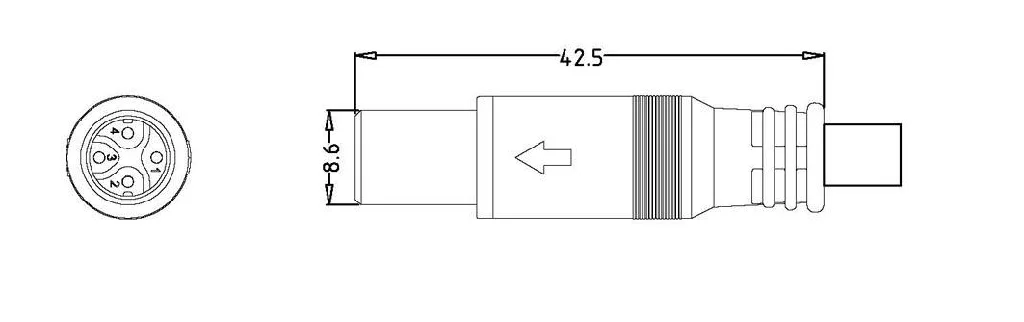

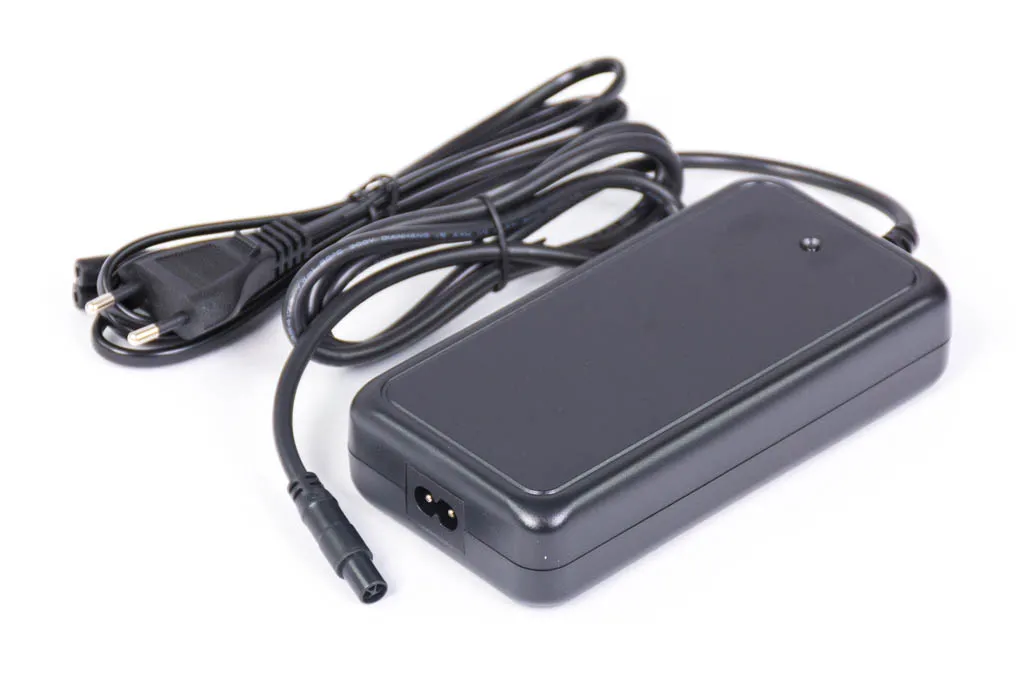

The ECONO 36V charger is specifically designed for ECONO batteries, providing safe and efficient charging using a 4-pin connector. It monitors battery temperature during charging to enhance safety and uses the CC-CV (constant current – constant voltage) method, with a maximum charging voltage of 42V.
This charger ensures that your ECONO battery is charged safely, efficiently, and reliably, preserving battery life while providing optimal performance for your e-bike.
Important notice: Always use only ECONO chargers to charge Comtron batteries. Using other chargers may damage the battery and void the warranty.
Features
- Charging current: 4A
- Compatible with all ECONO 36V batteries via 4-pin connector
- Temperature monitoring for safe charging
- CC-CV charging method: constant current up to ~80%, constant voltage for the final percent+
- Maximum charging voltage: 42V
- Protective features: overvoltage protection, over-current protection, short-circuit protection
- Temperature range for charging: 10–45°C
Compatible with
- Model: All Comtron ELK smart batteries with 4-pin connector
