The best drive systems for your new riding experience

Bafang products are of the highest quality and offer great flexibility. We offer a variety of drive systems for different applications to provide the user with the best driving experience at all times.

Learn more about Bafang and Power your Life.

Bafang logo

Central motor

Bafang M510

M510 is an overturning upgrade of the eMTB performance motor. Comparing with the last generation, the max torque of M510 remains 110Nm, but the weight is reduced by 18% while the max power output is increased by 20%. Max cadence support is extended up to 120RPM.

Nominal Voltage (Vdc)

36

Current Limit (A)

21

Max. Possible Power(W)

790

Rated Power (W)

250

Max. Support Level

340%

Max. Possible Torque (Nm)

110

Weight (kg)

2.9

Light Drive Capacity (Vdc/W)

12 / 6(max)

Chain Guide

ISCG05

IP

IPX6

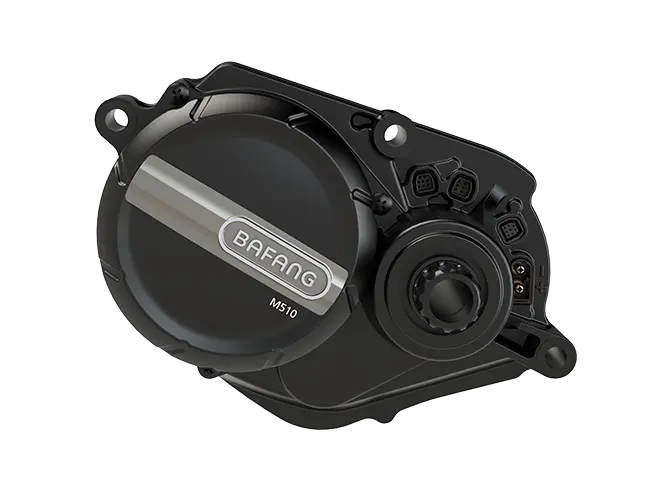

Bafang M510 motor

Used on:

  • ECONO Pantera 29 C9 160 2026
  • ECONO Pantera 29 C9 140 2026 Limited
  • ECONO Pantera 29 C8 140 2025
  • ECONO Gams MTB and SUV 29 EEC7 2026
  • ECONO Gams MTB and SUV 29 C7 2026
Central motor

Bafang M410

eMTBs can rely on the powerful and efficient M410 mid motor. With 250W dependable power and 90Nm torque, it offers strong support where needed.

Nominal Voltage (Vdc)

36

Current Limit (A)

17

Max. Possible Power(W)

550

Rated Power (W)

250

Max. Support Level

340%

Max. Possible Torque (Nm)

90

Weight (kg)

3,3

Light Drive Capacity (Vdc/W)

12 / 6(max)

Chain Guide

6 bolt

IP

IPX6

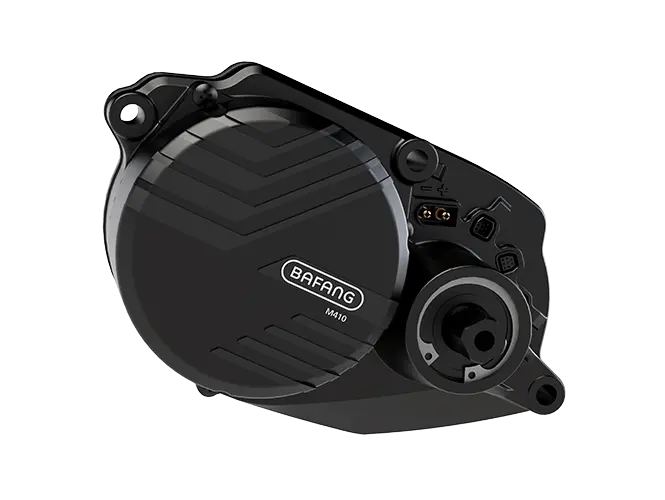

Bafang M410 motor

Used on:

  • ECONO Pantera 29 C6 120 2026
  • ECONO Gams MTB and SUV 29 EEC6 2026
  • ECONO Gams MTB and SUV 29 C6 2026
  • ECONO Mare SUV 28 EEC5 2026
Central motor

Bafang M210

Smooth, silent and very economic: The M210 mid-motor shines with an overwhelming cost-performance ratio. Weighing just 3.2kg at 250W rated power output, it is perfectly suited to entry-level eCity bikes.

Nominal Voltage (Vdc)

36

Current Limit (A)

17

Max. Possible Power(W)

550

Rated Power (W)

250

Max. Support Level

290%

Max. Possible Torque (Nm)

80

Weight (kg)

3.2

Light Drive Capacity (Vdc/W)

12 / 6(max)

Chain Guide

6 bolt

IP

IPX6

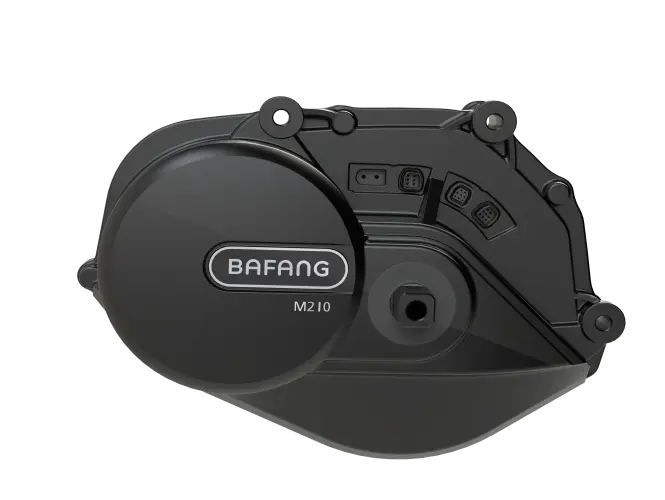

Bafang M210 motor

Used on:

  • ECONO Mare CITY 26 EEC4 2026
  • ECONO Mare CITY 28 EEC4 2026
  • ECONO Mare CITY 28 EECA(AUTO) 2025
Rear motor

Bafang H305

This rear-drive motor, which has a rated power of 250W and a maximum torque of 50Nm, provides ideal power for eCity and eTour bikes. Strong and efficient, this motor greatly enhances your riding comfort. Compatible with freewheels and disc brakes.

Nominal Voltage (Vdc)

36

Rated Power (W)

250

Max. Possible Torque (Nm)

50

Weight (kg)

3.2

Cabling Route

Shaft Side_Left

Cable Length (mm),Connection Type

250 G9.1

Spoke Specification

36H*13G

IP

IPX6

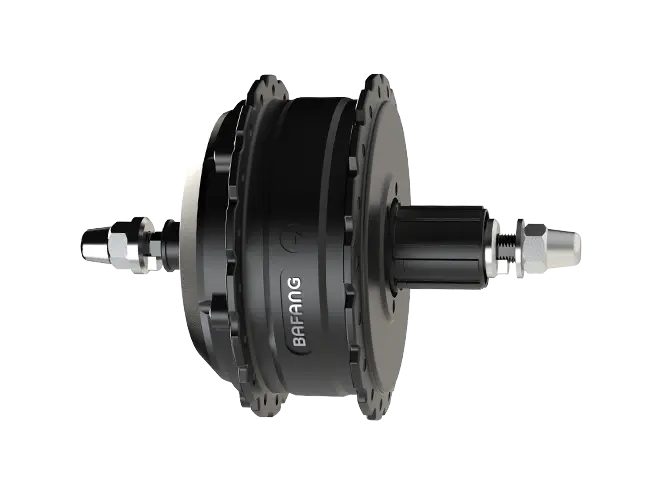

Bafang H305 motor

Used on:

  • ECONO Apes CITY 28 EER3 2026
  • ECONO Apes CITY 26 EER4 2026
  • ECONO Apes CITY 28 EER4 2026
Rear motor

Bafang H400B

This rear-drive motor, which has a rated power of 250W and a maximum torque of 45Nm, provides ideal power for eCity and eTour bikes. Strong and efficient, this motor greatly enhances your riding comfort. Compatible with freewheels and disc brakes.

Nominal Voltage (Vdc)

36

Rated Power (W)

250

Max. Possible Torque (Nm)

45

Weight (kg)

3.3

Cabling Route

Shaft Side_Right

Cable Length (mm),Connection Type

250 G9.1

Spoke Specification

36H*13G / 36H*12G

IP

IPX5

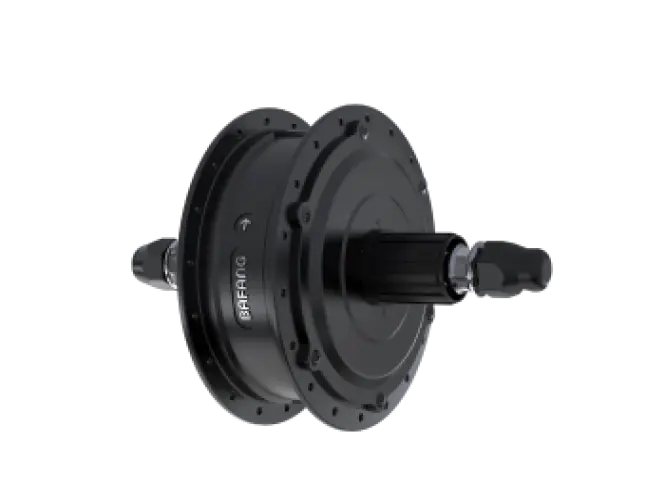

Bafang H400B motor

Used on:

  • ECONO Apes SUV 28 EER5 2026

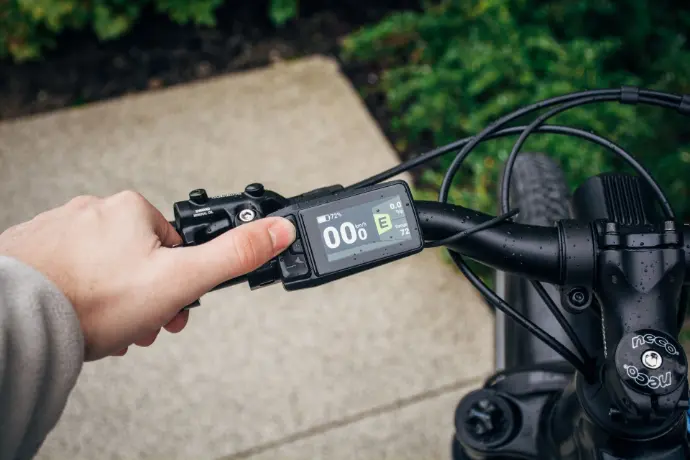

Using Display C080

System and controls

Perfectly designed to bring you all the key information at a glance. BAFANG HMI employ the latest technologies in an easy-to-use package, with exceptional connectivity that keeps the information flowing through any ride.

 Covering all kinds of setup, Bafang is an ideal companion no matter your style, from eMTB to eCity, and with Bluetooth and USB connection options, you can sync up your devices for a seamless experience.

HMI

Bafang DP C080

An all-in-one solution with optimized ergonomic design, providing not only a clean handlebar but also easy operation with just your thumb. With multiple UI options, this handlebar HMI is always intuitive to use.

Nominal Voltage (Vdc)

36

Support Modes

4 modes - ECO, TOUR, SPORT, SPORT PLUS, BOOST

Holder Diameter (mm)

Ø 22.2

ON/OFF Function

Yes

Light Control

Auto / Manual

Walk Assistance

Yes

Setting

Yes

Indications

Speed, Trip distance, capacity, error codes, power, UI options, battery data

IP

IPX7

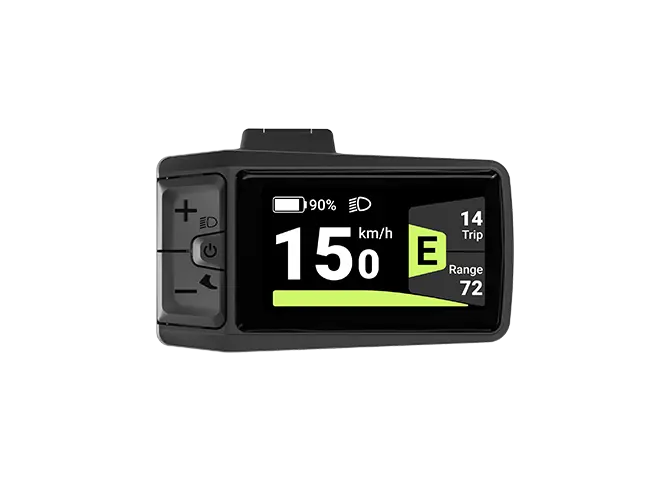

Bafang C080

Used on:

  • ECONO Pantera 29 C6 120 2026
  • ECONO Gams MTB and SUV 29 EEC6 2026
  • ECONO Gams MTB and SUV 29 C6 2026
  • ECONO Mare SUV 28 EEC5 2026
  • ECONO Mare CITY 26 EEC4 2026
  • ECONO Mare CITY 28 EEC4 2026
  • ECONO Apes CITY 28 EER3 2026
  • ECONO Apes CITY 26 EER4 2026
  • ECONO Apes CITY 28 EER4 2026
  • ECONO Apes SUV 28 EER5 2026
HMI

Bafang DP C245

The large high-contrast TFT LCD display delivers all important data large and easy to read, even in direct sunlight. Its remote control is extremely robust as well as easy and intuitive to use. The USB port supports mobile devices and the optional Bluetooth communication addresses the Bafang Go app.

Nominal Voltage (Vdc)

36

Support Modes

4 modes - ECO, TOUR, SPORT, SPORT PLUS, BOOST

Holder Diameter (mm)

Ø 25.4

ON/OFF Function

Yes

Light Control

Auto / Manual

Walk Assistance

Yes

Setting

Yes

Indications

Speed, Trip distance, capacity, error codes, power, UI options, battery data

USB Charge

Yes

IP

IPX6

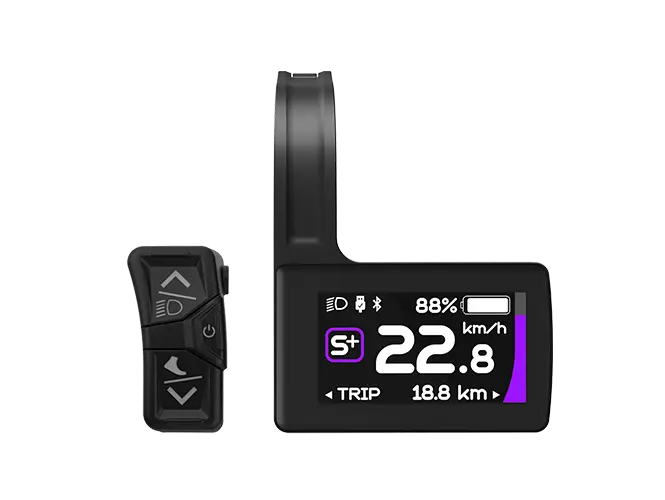

Bafang C245

Used on:

  • ECONO Pantera 29 C9 160 2026
  • ECONO Pantera 29 C8 140 2025
HMI

Bafang DP C030

The large high-contrast TFT LCD display delivers all important data large and easy to read, even in direct sunlight. Its remote control is extremely robust as well as easy and intuitive to use. The USB port supports mobile devices and the optional Bluetooth communication addresses the Bafang Go app.

Nominal Voltage (Vdc)

36

Support Modes

4 modes - ECO, TOUR, SPORT, SPORT PLUS, BOOST

Holder Diameter (mm)

Ø 25.4

ON/OFF Function

Yes

Light Control

Auto / Manual

Walk Assistance

Yes

Setting

Yes

Indications

Speed, Trip distance, capacity, error codes, power, UI options, battery data

IP

IPX7

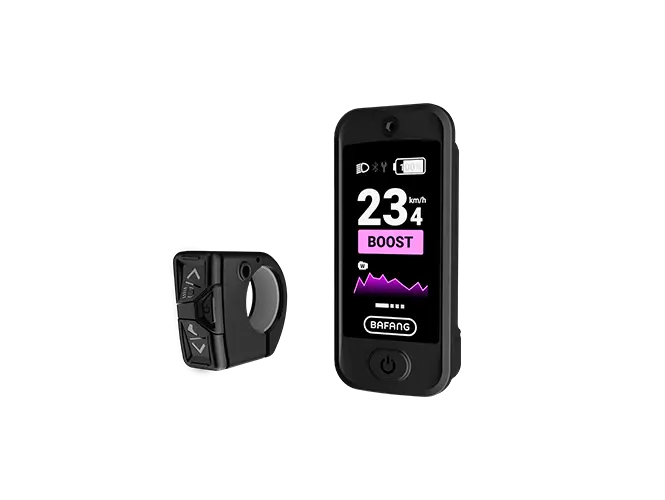

Bafang C030

Used on:

  • ECONO Pantera 29 C9 140 2026 Limited

Guides and videos

Whether you're a first-time rider or just looking to get the most out of your eBike, this tutorial covers all the essential functions and operations.

DP C030
DP C080
