Description

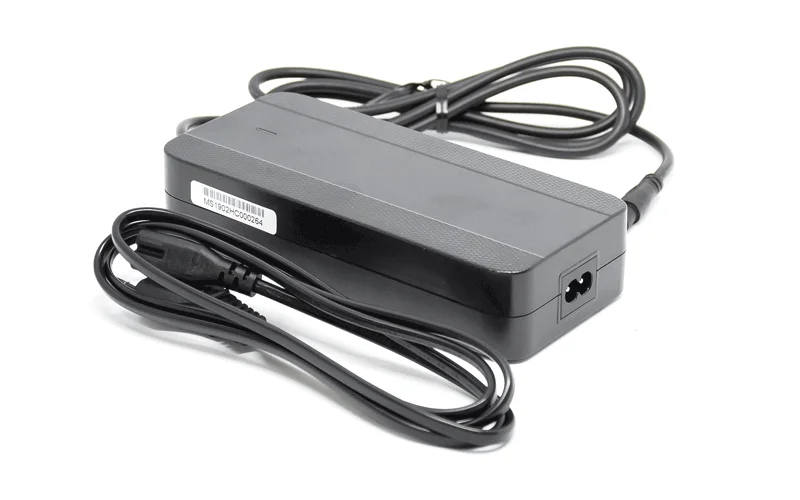

The ECONO 36V charger delivers safe and efficient charging for all 36V Comtron batteries using a 3-pin connector. It monitors battery temperature during charging to enhance safety and uses the CC-CV (constant current – constant voltage) method. The maximum charging voltage is 42V, ensuring reliable and stable battery performance.
Important notice: Always use only ECONO chargers to charge ECONO batteries. Using other chargers may damage the battery and void the warranty.
This charger ensures that your ECONO battery is charged safely, efficiently, and reliably, maintaining optimal performance and long battery life.
Features
- Charging current: 4A
- Temperature monitoring for safer charging
- Maximum charging voltage: 42V
- Protective features: overvoltage protection, over-current protection, short-circuit protection, automatic shutdown when fully charged
- Charging only within safe temperature range: 10–45°C to preserve battery life
Compatible with

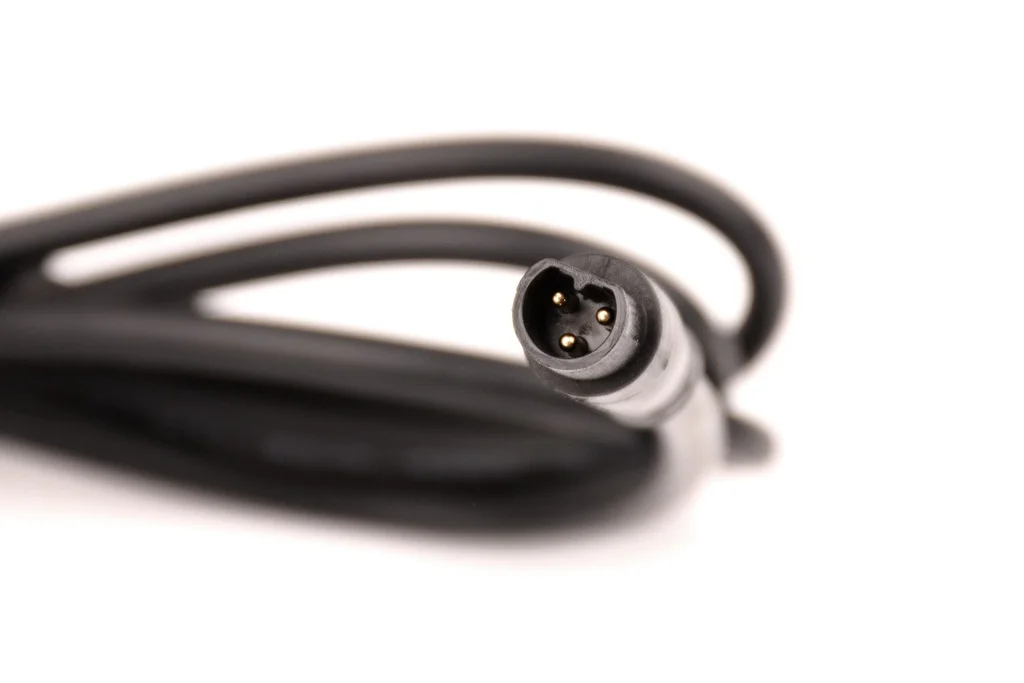

- Model: All 36V Comtron batteries (3-pin connector)
Built-in protection features
Overvoltage Protection
Protection against excessive current
Short circuit protection
Automatic shutdown when the battery is full
Consideration of the temperature range
Only charge when the battery is between 10 and 45°C, as this affects the battery's lifespan.
Charging method
Up to approx. 80% full with constant current 2A (CC)
The last percentages are with a constant voltage of 42V (CV).
