About the product
Polnilec ECONO polni z tokom 4A. Namenjem je za 36V baterije ECONO, katere uporabljajo 3pin konektor. Ta polnilcu omogoča spremljanje temperature baterije, kar neprimerno poveča varnost pri polnjenju. Polnilec polni baterijo po CC-CV metodi. Najvišja polnilna napetost znaša 42V.
Charging time
Our batteries can only be charged with ECONA chargers.
ECONO 378Wh battery (10.5Ah)
To fill 50%
About 1.5 hours
Fill 100%
About 3 hours
ECONO 504Wh battery (14Ah)
To fill 50%
About 2 hours
Fill 100%
About 4 hours
ECONO 630Wh battery (17.5ah)
To fill 50%
About 2.5 hours
Fill 100%
About 5 hours
ECONO 756Wh battery (21Ah)
To fill 50%
About 3 hours
Fill 100%
About 6 hours
Protective functions
Protection against overvoltage
Protection against overflow
Protection recently
Auto -off when the battery is full
Considering the temperature range
Full only when the battery is in the range between 10 and 45 ° C, which affects the battery lifeFilling mode
Up to about 80% filled with constant current 4a (CC)
Last percentage with a constant voltage of 42V (CV)
The scope of the package

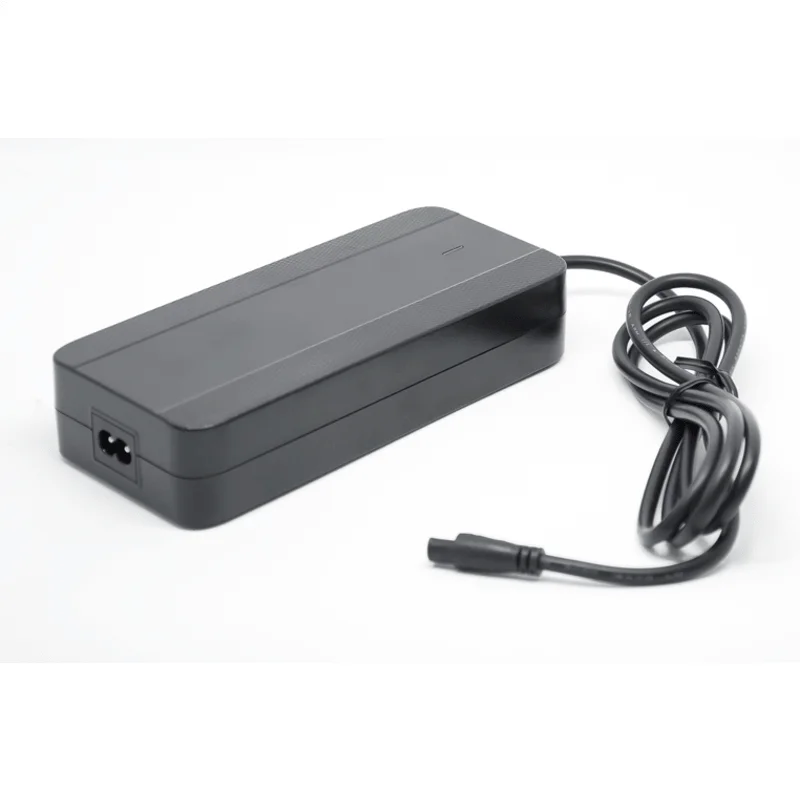

1x charger for 36V battery ECONO / 4A 3pin
